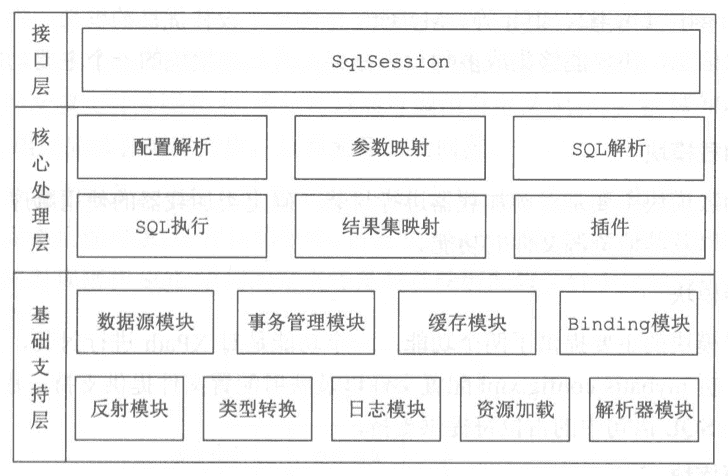

基础支持层——反射模块

Private Class <?> type; //对应的 C1 ass 类型

//可读属性的名称集合，可读属性就是存在相应 getter 方法的属性，初始值为空数组
private String I readablepropertynames= EMPTY STRING ARRAY

//可写属性的名称集合，可写属性就是存在相应 setter 方法的属性，初始值为空数组
private String  [writeablepropertynames EMPTY STRING ARRAY;
//记录了属性相应的 setter 方法，key 是属性名称，value 是 Invoker 对象，它是对 setter 方法对应
// Me thod 对象的封装，后面会详细介绍
private Map <String, Invoker> setmethods =new Hashmap <String, Invoker>  ();

//属性相应的 getter 方法集合，key 是属性名称，value 也是 Invoker 对象
private Map <String, Invoker> getmethods =new Hashmap <String, Invoker> ();

//记录了属性相应的 setter 方法的参数值类型，key 是属性名称，value 是 setter 方法的参数类型
private Map <String, Class <?>> settypes =new Hashmap <string, Class <?>> ();

//记录了属性相应的 getter 方法的返回值类型，key 是属性名称，value 是 getter 方法的返回值类型
private Map <string, Class <?>> gettypes=new Hashmap <string, Class <?>> ();

private Constructor <?> default Constructor; //记录了默认构造方法

//记录了所有属性名称的集合
private Map <string, String> caseinsensitivepropertymap-new Hashmap <String, String> ();

public Reflector(Class<?> clazz) {
  type = clazz; // 初始化type字段
  // 查找clazz的默认构造方法，具体实现是通过反射遍历所有构造方法
  addDefaultConstructor(clazz);
  addGetMethods(clazz); // 处理clazz中的getter方法，填充getMethods集合和getTypes集合
  addSetMethods(clazz); // 处理clazz中的setter方法，填充setMethods集合和setTypes集合
  addFields(clazz); // 处理没有getter/setter方法的字段

  // 根据getMethods/setMethods集合，初始化可读/写属性的名称集合
  readablePropertyNames = getMethods.keySet().toArray(new String[0]);
  writablePropertyNames = setMethods.keySet().toArray(new String[0]);

  // 初始化caseInsensitivePropertyMap集合，其中记录了所有大写格式的属性名称
  for (String propName : readablePropertyNames) {
    caseInsensitivePropertyMap.put(
      propName.toUpperCase(Locale.ENGLISH), propName);
  }
  for (String propName : writablePropertyNames) {
    caseInsensitivePropertyMap.put(
      propName.toUpperCase(Locale.ENGLISH), propName);
  }
}

/**
   * @return The field type as {@link Type}. If it has type parameters in the declaration,
   *         they will be resolved to the actual runtime {@link Type}s.
   */

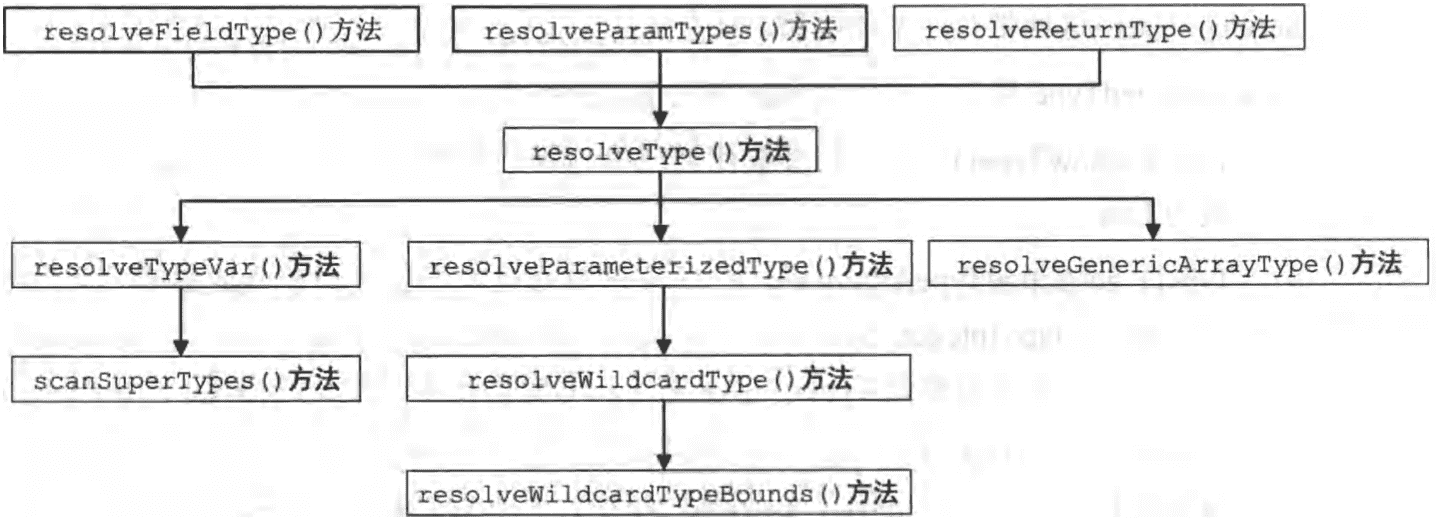

public static Type resolveFieldType(Field field, Type srcType) {
  Type fieldType = field.getGenericType();
  Class<?> declaringClass = field.getDeclaringClass();
  return resolveType(fieldType, srcType, declaringClass);
}

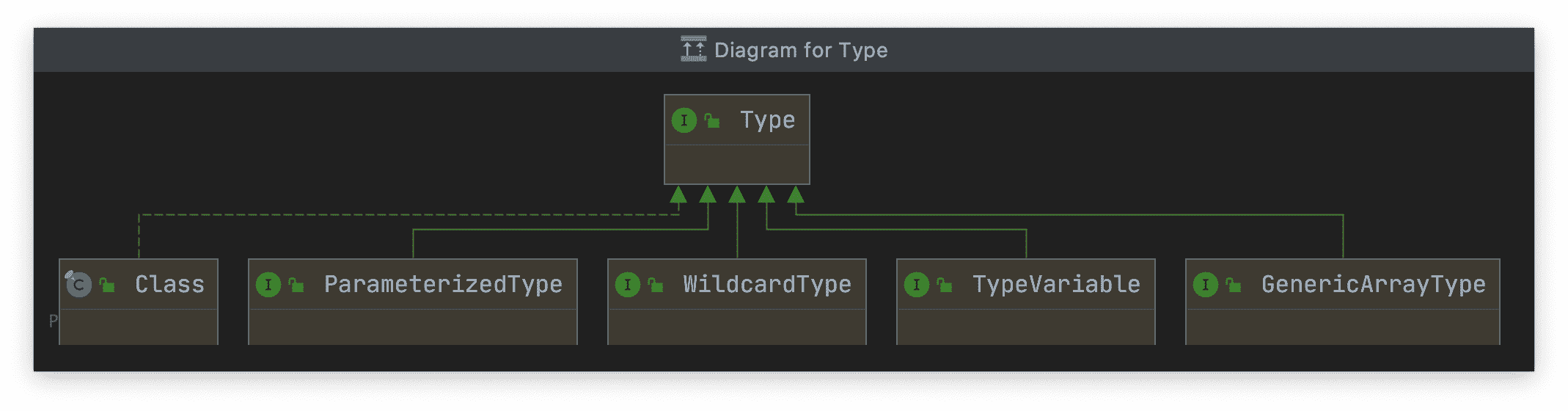

private static Type resolveType(Type type, Type srcType, Class<?> declaringClass) {
  if (type instanceof TypeVariable) {
    // 解析TypeVariable类型
    return resolveTypeVar((TypeVariable<?>) type, srcType, declaringClass);
  } else if (type instanceof ParameterizedType) {
    // 解析ParameterizedType类型
    return resolveParameterizedType((ParameterizedType) type, srcType, declaringClass);
  } else if (type instanceof GenericArrayType) {
    // 解析genericArrayType类型
    return resolveGenericArrayType((GenericArrayType) type, srcType, declaringClass);
  } else {
    return type; // class类型
  }
  // 字段、返回值 、参 数 不可能直接定义 成WildcardType类 型，但可以嵌套在别 的类 型中
}

public class ClassA <K, V> {
  protected Map<K, V> map;
	// ••• map 的 getter/setter 方 法 (略 )
}

public class SubClassA <T> extends ClassA<T,T> {
  // ......
}

public class TestType {

  SubClassA<Long> sa = new SubClassA();

  public static void main(String[] args) throws NoSuchFieldException {
    Field f = ClassA.class.getDeclaredField("map");
    System.out.println(f.getGenericType());
    System.out.println(f.getGenericType() instanceof ParameterizedType);
    // 输出：
    // java.util.Map<K, V>
    // true

    // 解析SubA<Long>(ParameterizedType类 型)中的map字段，注意:ParameterizedTypelmpl是
    // 在 sun.reflect.generics.reflectiveObjects 包下的 ParameterizedType接口实 现

    Type type = TypeParameterResolver.resolveFieldType(
      f, ParameterizedTypelmpl.make(SubClassA.class,
                                    new Type[]{Long.class}, TestType.class));

    //也可以使用下面的方式生成上述ParameterizedType对 象，
    // 并 调 用 TypeParameterResolver.resolveFieldType ()方 法 :
    //
    // TypeParameterResolver.resolveFieldType(f,
    // TestType.class.getDeclaredField("sa").getGenericType());
    System.out.println(type.getClass());
    // 输 出 :class TypeParameterResolver$ParameterizedTypelmpl

    // 注意，TypeParameterResolver$ParameterizedTypeImpl是ParameterizedType接口的实 现
    ParameterizedType p = (ParameterizedType) type;
    System.out.println(p.getRawType());
    // 输 出 :interface java.util.Map

    System.out.println(p.getOwnerType());
    // 输 出:null

    for (Type t : p .getActualTypeArguments()) {
      System.out.println(t);
    }
    //输 出:
    // class java.lang.Long
    // class java.lang.Long
  }
}

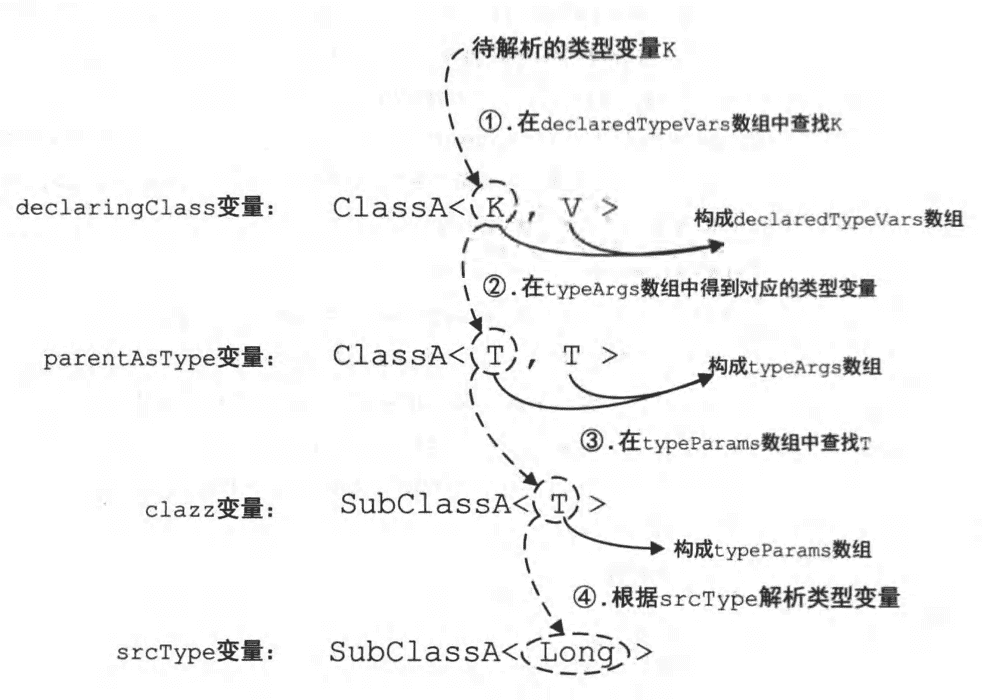

private static Type scanSuperTypes(
  TypeVariable<?> typeVar, Type srcType,
  Class<?> declaringClass, Class<?> clazz, Type superclass) {
    Type result = null;
    if (superclass instanceof ParameterizedType) {
      ParameterizedType parentAsType = (ParameterizedType) superclass;
      Class<?> parentAsClass = (Class<?>) parentAsType.getRawType();
      if (declaringClass == parentAsClass) {
        Type[] typeArgs = parentAsType.getActualTypeArguments();
        TypeVariable<?>[] declaredTypeVars =
          declaringClass.getTypeParameters();
        for (int i = 0; i < declaredTypeVars.length; i++) {
          if (declaredTypeVars[i] == typeVar) {
            if (typeArgs[i] instanceof TypeVariable) {
              TypeVariable<?>[] typeParams = clazz.getTypeParameters();
              for (int j = 0; j < typeParams.length; j++) {
                if (typeParams[j] == typeArgs[i]) {
                  if (srcType instanceof ParameterizedType) {
                    result = ((ParameterizedType) srcType).getActualTypeArguments()[j];
                  }
                  break;
                }
              }
            } else {
              result = typeArgs[i];
            }
          }
        }
      } else if (declaringClass.isAssignableFrom(parentAsClass)) {
        result = resolveTypeVar(typeVar, parentAsType, declaringClass);
      }
    } else if (superclass instanceof Class) {
      if (declaringClass.isAssignableFrom((Class<?>) superclass)) {
        result = resolveTypeVar(typeVar, superclass, declaringClass);
      }
    }
    return result;
  }

public interface ObjectFactory {

  /**
   * Sets configuration properties.
   * 设置配置信息
   * @param properties configuration properties
   */
  void setProperties(Properties properties);

  /**
   * Creates a new object with default constructor.
   * 通过无参构造器创建指定类的对象
   * @param type Object type
   * @return
   */
  <T> T create(Class<T> type);

  /**
   * Creates a new object with the specified constructor and params.
   * 根据参数列表，从指定类型中选择合适的构造器创建对象
   * @param type Object type
   * @param constructorArgTypes Constructor argument types
   * @param constructorArgs Constructor argument values
   * @return
   */
  <T> T create(Class<T> type, List<Class<?>> constructorArgTypes, List<Object> constructorArgs);

  /**
   * Returns true if this object can have a set of other objects.
   * It's main purpose is to support non-java.util.Collection objects like Scala collections.
   * 检测指定类型是否为集合类型，主要处理java.util.Collectiopn及其子类
   *
   * @param type Object type
   * @return whether it is a collection or not
   * @since 3.1.0
   */
  <T> boolean isCollection(Class<T> type);

}

private  <T> T instantiateClass(Class<T> type, List<Class<?>> constructorArgTypes, List<Object> constructorArgs) {
    try {
      Constructor<T> constructor;
      if (constructorArgTypes == null || constructorArgs == null) {
        constructor = type.getDeclaredConstructor();
        if (!constructor.isAccessible()) {
          constructor.setAccessible(true);
        }
        return constructor.newInstance();
      }
      constructor = type.getDeclaredConstructor(constructorArgTypes.toArray(new Class[constructorArgTypes.size()]));
      if (!constructor.isAccessible()) {
        constructor.setAccessible(true);
      }
      return constructor.newInstance(constructorArgs.toArray(new Object[constructorArgs.size()]));
    } catch (Exception e) {
      StringBuilder argTypes = new StringBuilder();
      if (constructorArgTypes != null && !constructorArgTypes.isEmpty()) {
        for (Class<?> argType : constructorArgTypes) {
          argTypes.append(argType.getSimpleName());
          argTypes.append(",");
        }
        argTypes.deleteCharAt(argTypes.length() - 1); // remove trailing ,
      }
      StringBuilder argValues = new StringBuilder();
      if (constructorArgs != null && !constructorArgs.isEmpty()) {
        for (Object argValue : constructorArgs) {
          argValues.append(String.valueOf(argValue));
          argValues.append(",");
        }
        argValues.deleteCharAt(argValues.length() - 1); // remove trailing ,
      }
      throw new ReflectionException("Error instantiating " + type + " with invalid types (" + argTypes + ") or values (" + argValues + "). Cause: " + e, e);
    }
  }

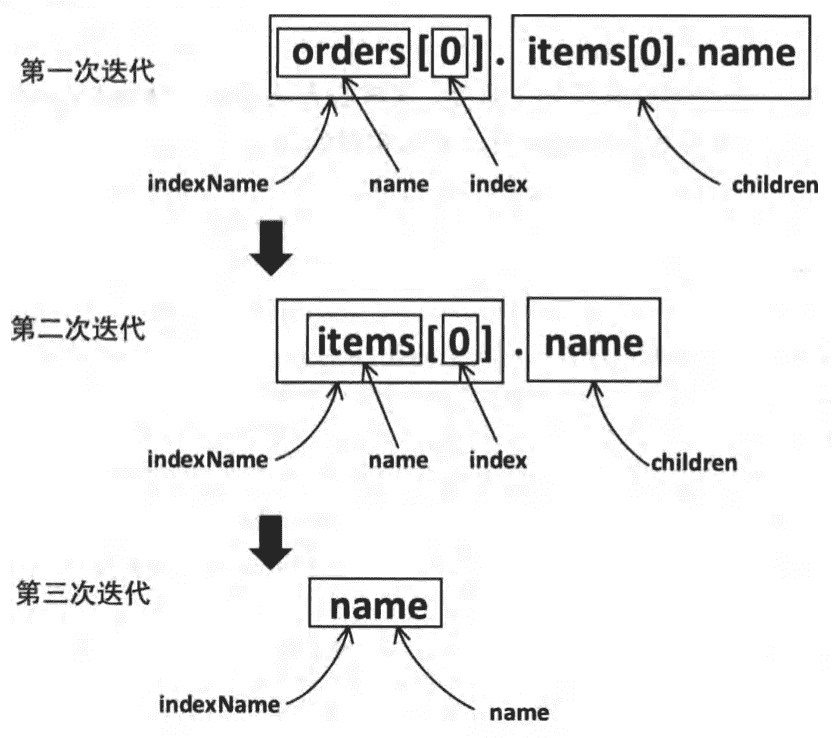

public class PropertyTokenizer implements Iterator<PropertyTokenizer> {
  // 当前表达式的名称
  private String name;

  // 当前表达式的索引名
  private final String indexedName;

  // 索引下标
  private String index;

  // 子表达式
  private final String children;

  public PropertyTokenizer(String fullname) {
    // 查找 . 的位置
    int delim = fullname.indexOf('.');
    if (delim > -1) {
      // 初始化 name
      name = fullname.substring(0, delim);
      // 初始化children
      children = fullname.substring(delim + 1);
    } else {
      name = fullname;
      children = null;
    }
    // 初始化indexname
    indexedName = name;
    delim = name.indexOf('[');
    if (delim > -1) {
      // 初始化index
      index = name.substring(delim + 1, name.length() - 1);
      name = name.substring(0, delim);
    }
  }

  public String getName() {
    return name;
  }

  public String getIndex() {
    return index;
  }

  public String getIndexedName() {
    return indexedName;
  }

  public String getChildren() {
    return children;
  }

  @Override
  public boolean hasNext() {
    return children != null;
  }

  // next方法中会创建PropertyTokenizer对象并解析children字段记录的子表达式
  @Override
  public PropertyTokenizer next() {
    return new PropertyTokenizer(children);
  }

  @Override
  public void remove() {
    throw new UnsupportedOperationException("Remove is not supported, as it has no meaning in the context of properties.");
  }
}

public final class PropertyNamer {

  private PropertyNamer() {
    // Prevent Instantiation of Static Class
  }

  // 将方法名转换成属性名
  public static String methodToProperty(String name) {
    if (name.startsWith("is")) {
      name = name.substring(2);
    } else if (name.startsWith("get") || name.startsWith("set")) {
      name = name.substring(3);
    } else {
      throw new ReflectionException("Error parsing property name '" + name + "'.  Didn't start with 'is', 'get' or 'set'.");
    }

    if (name.length() == 1 || (name.length() > 1 && !Character.isUpperCase(name.charAt(1)))) {
      name = name.substring(0, 1).toLowerCase(Locale.ENGLISH) + name.substring(1);
    }

    return name;
  }

  public static boolean isProperty(String name) {
    return name.startsWith("get") || name.startsWith("set") || name.startsWith("is");
  }

  public static boolean isGetter(String name) {
    return name.startsWith("get") || name.startsWith("is");
  }

  public static boolean isSetter(String name) {
    return name.startsWith("set");
  }

}

public final class PropertyCopier {

  private PropertyCopier() {
    // Prevent Instantiation of Static Class
  }

  public static void copyBeanProperties(Class<?> type, Object sourceBean, Object destinationBean) {
    Class<?> parent = type;
    while (parent != null) {
      final Field[] fields = parent.getDeclaredFields();
      for(Field field : fields) {
        try {
          field.setAccessible(true);
          field.set(destinationBean, field.get(sourceBean));
        } catch (Exception e) {
          // Nothing useful to do, will only fail on final fields, which will be ignored.
        }
      }
      // 继续拷贝父类中定义的字段
      parent = parent.getSuperclass();
    }
  }

}

public class MetaClass {

  // 用于缓存Reflector对象
  private final ReflectorFactory reflectorFactory;
  // 创建MetaClass时会指定一个类，该Reflector对象会用于记录该类相关的元信息
  private final Reflector reflector;

  // MetaClass的构造方法是使用private修饰的
  private MetaClass(Class<?> type, ReflectorFactory reflectorFactory) {
    this.reflectorFactory = reflectorFactory;
    // 创建Reflector对象
    this.reflector = reflectorFactory.findForClass(type);
  }

  // 使用静态方法创建MetaClass对象
  public static MetaClass forClass(Class<?> type, ReflectorFactory reflectorFactory) {
    return new MetaClass(type, reflectorFactory);
  }

  public MetaClass metaClassForProperty(String name) {
    Class<?> propType = reflector.getGetterType(name);
    return MetaClass.forClass(propType, reflectorFactory);
  }

  public String findProperty(String name) {
    // 委托给buildProperty()方法实现
    StringBuilder prop = buildProperty(name, new StringBuilder());
    return prop.length() > 0 ? prop.toString() : null;
  }

  public String findProperty(String name, boolean useCamelCaseMapping) {
    if (useCamelCaseMapping) {
      name = name.replace("_", "");
    }
    return findProperty(name);
  }

  public String[] getGetterNames() {
    return reflector.getGetablePropertyNames();
  }

  public String[] getSetterNames() {
    return reflector.getSetablePropertyNames();
  }

  public Class<?> getSetterType(String name) {
    PropertyTokenizer prop = new PropertyTokenizer(name);
    if (prop.hasNext()) {
      MetaClass metaProp = metaClassForProperty(prop.getName());
      return metaProp.getSetterType(prop.getChildren());
    } else {
      return reflector.getSetterType(prop.getName());
    }
  }

  public Class<?> getGetterType(String name) {
    PropertyTokenizer prop = new PropertyTokenizer(name);
    if (prop.hasNext()) {
      MetaClass metaProp = metaClassForProperty(prop);
      return metaProp.getGetterType(prop.getChildren());
    }
    // issue #506. Resolve the type inside a Collection Object
    return getGetterType(prop);
  }

  private MetaClass metaClassForProperty(PropertyTokenizer prop) {
    Class<?> propType = getGetterType(prop);
    return MetaClass.forClass(propType, reflectorFactory);
  }

  private Class<?> getGetterType(PropertyTokenizer prop) {
    Class<?> type = reflector.getGetterType(prop.getName());
    if (prop.getIndex() != null && Collection.class.isAssignableFrom(type)) {
      Type returnType = getGenericGetterType(prop.getName());
      if (returnType instanceof ParameterizedType) {
        Type[] actualTypeArguments = ((ParameterizedType) returnType).getActualTypeArguments();
        if (actualTypeArguments != null && actualTypeArguments.length == 1) {
          returnType = actualTypeArguments[0];
          if (returnType instanceof Class) {
            type = (Class<?>) returnType;
          } else if (returnType instanceof ParameterizedType) {
            type = (Class<?>) ((ParameterizedType) returnType).getRawType();
          }
        }
      }
    }
    return type;
  }

  private Type getGenericGetterType(String propertyName) {
    try {
      Invoker invoker = reflector.getGetInvoker(propertyName);
      if (invoker instanceof MethodInvoker) {
        Field _method = MethodInvoker.class.getDeclaredField("method");
        _method.setAccessible(true);
        Method method = (Method) _method.get(invoker);
        return TypeParameterResolver.resolveReturnType(method, reflector.getType());
      } else if (invoker instanceof GetFieldInvoker) {
        Field _field = GetFieldInvoker.class.getDeclaredField("field");
        _field.setAccessible(true);
        Field field = (Field) _field.get(invoker);
        return TypeParameterResolver.resolveFieldType(field, reflector.getType());
      }
    } catch (NoSuchFieldException e) {
    } catch (IllegalAccessException e) {
    }
    return null;
  }

  public boolean hasSetter(String name) {
    PropertyTokenizer prop = new PropertyTokenizer(name);
    if (prop.hasNext()) {
      if (reflector.hasSetter(prop.getName())) {
        MetaClass metaProp = metaClassForProperty(prop.getName());
        return metaProp.hasSetter(prop.getChildren());
      } else {
        return false;
      }
    } else {
      return reflector.hasSetter(prop.getName());
    }
  }

  // 判断指定属性是否有 getting 方法
  public boolean hasGetter(String name) {
    PropertyTokenizer prop = new PropertyTokenizer(name);
    if (prop.hasNext()) {
      if (reflector.hasGetter(prop.getName())) {
        MetaClass metaProp = metaClassForProperty(prop);
        return metaProp.hasGetter(prop.getChildren());
      } else {
        return false;
      }
    } else {
      return reflector.hasGetter(prop.getName());
    }
  }

  public Invoker getGetInvoker(String name) {
    return reflector.getGetInvoker(name);
  }

  public Invoker getSetInvoker(String name) {
    return reflector.getSetInvoker(name);
  }

  private StringBuilder buildProperty(String name, StringBuilder builder) {
    // 解析属性表达式
    PropertyTokenizer prop = new PropertyTokenizer(name);
    if (prop.hasNext()) { // 是否还有子表达式
      // 查找Propertytokenizer.name对应的属性
      String propertyName = reflector.findPropertyName(prop.getName());
      if (propertyName != null) {
        builder.append(propertyName);
        builder.append(".");
        // 为该属性创建对应的MetaClass对象
        MetaClass metaProp = metaClassForProperty(propertyName);
        // 递归解析children字段，将解析结果添加到builder中保存
        metaProp.buildProperty(prop.getChildren(), builder);
      }
    } else { // 递归出口
      String propertyName = reflector.findPropertyName(name);
      if (propertyName != null) {
        builder.append(propertyName);
      }
    }
    return builder;
  }

  public boolean hasDefaultConstructor() {
    return reflector.hasDefaultConstructor();
  }

}

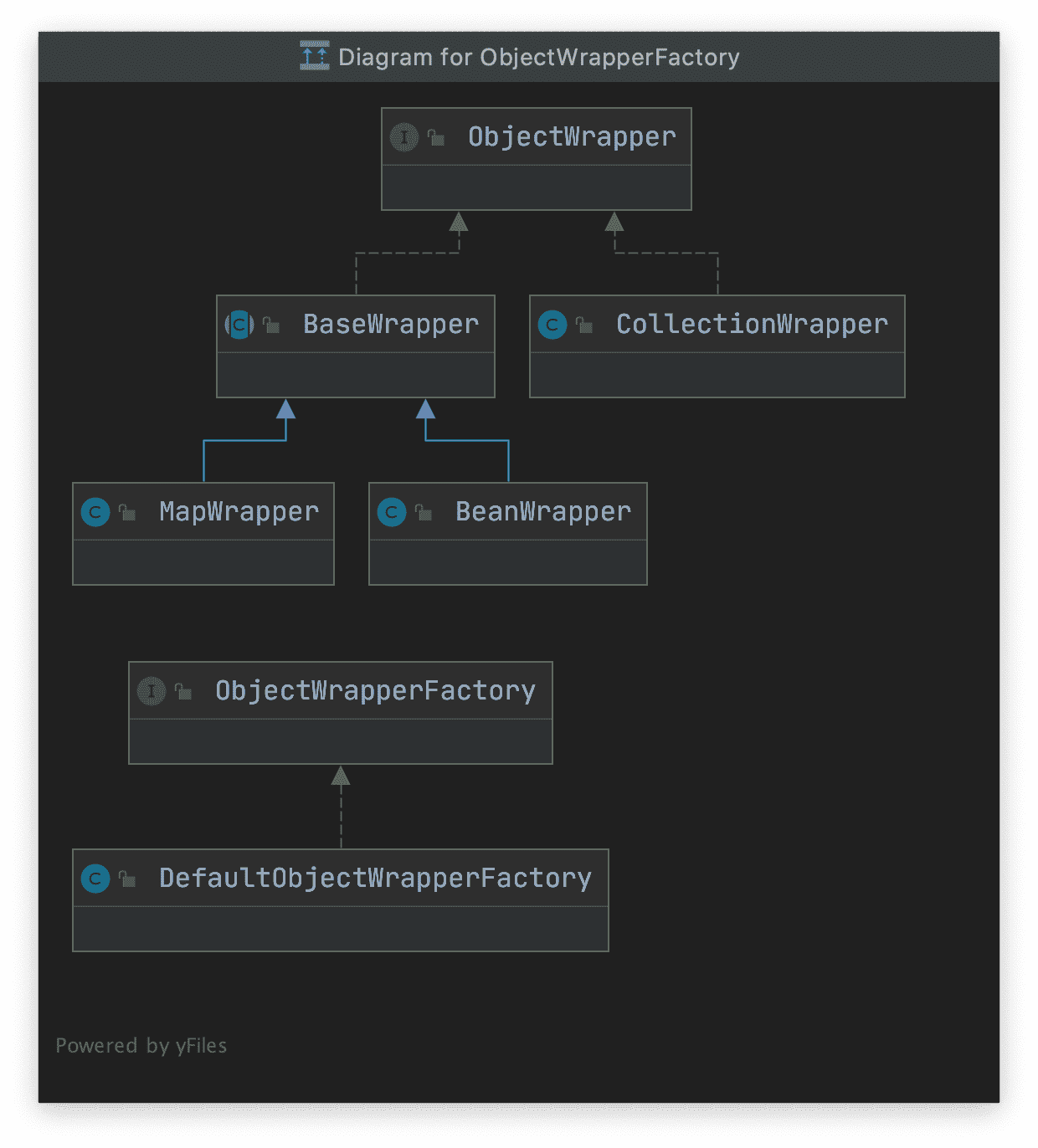

public interface ObjectWrapper {

  // 如果ObjectWrapper中封装的是普通的Bean对象，则调用相应属性的相应getter方法，
  // 如果封装的是集合类，则获取指定key或下标对应的value值
  Object get(PropertyTokenizer prop);

  // 如果ObjectWrapper中封装的是普通的Bean对象，则调用相应的setter方法
  // 如果封装的是集合类，则设置指定key或下标对应的value值
  void set(PropertyTokenizer prop, Object value);

  // 查找属性表达式指定的属性，第二个参数表示是否忽略属性表达式中的下划线
  String findProperty(String name, boolean useCamelCaseMapping);

  String[] getGetterNames();

  String[] getSetterNames();

  Class<?> getSetterType(String name);

  Class<?> getGetterType(String name);

  boolean hasSetter(String name);

  boolean hasGetter(String name);

  // 为属性表达式的属性创建相应的MetaObject对象
  MetaObject instantiatePropertyValue(String name, PropertyTokenizer prop, ObjectFactory objectFactory);

  boolean isCollection();

  void add(Object element);

  <E> void addAll(List<E> element);

}

// 原始JavaBean对象
private final Object originalObject;

// 上文介绍的ObjectWrapper对象，其中封装了originalObject对象
private final ObjectWrapper objectWrapper;

// 负责实例化originalObject的工厂对象
private final ObjectFactory objectFactory;

// 负责创建ObjectWrapper的工厂对象
private final ObjectWrapperFactory objectWrapperFactory;

// 用于创建并缓存Reflector对象的工厂对象
private final ReflectorFactory reflectorFactory;

private MetaObject(
  Object object, ObjectFactory objectFactory, ObjectWrapperFactory objectWrapperFactory, ReflectorFactory reflectorFactory) {
    this.originalObject = object;
    this.objectFactory = objectFactory;
    this.objectWrapperFactory = objectWrapperFactory;
    this.reflectorFactory = reflectorFactory;

    if (object instanceof ObjectWrapper) {
      this.objectWrapper = (ObjectWrapper) object;
    } else if (objectWrapperFactory.hasWrapperFor(object)) {
      this.objectWrapper = objectWrapperFactory.getWrapperFor(this, object);
    } else if (object instanceof Map) {
      this.objectWrapper = new MapWrapper(this, (Map) object);
    } else if (object instanceof Collection) {
      this.objectWrapper = new CollectionWrapper(this, (Collection) object);
    } else {
      this.objectWrapper = new BeanWrapper(this, object);
    }
  }

public Object getValue(String name) {
    PropertyTokenizer prop = new PropertyTokenizer(name);
    if (prop.hasNext()) {
      // 根据PropertyTokenizer解析后指定的属性，创建相应的MetaObject对象
      MetaObject metaValue = metaObjectForProperty(prop.getIndexedName());
      if (metaValue == SystemMetaObject.NULL_META_OBJECT) {
        return null;
      } else {
        return metaValue.getValue(prop.getChildren());
      }
    } else {
      return objectWrapper.get(prop);
    }
  }

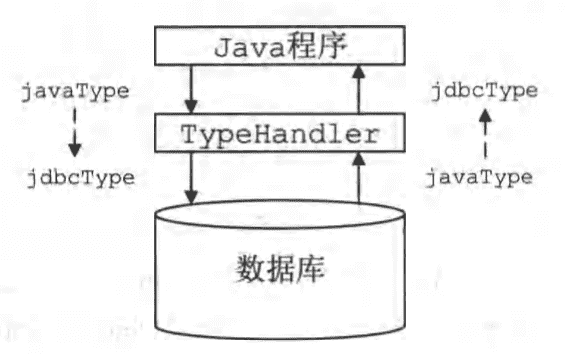

public interface TypeHandler<T> {

  //在通过 PreparedStatement为 SQL语 句绑 定参 数 时 ，会 将 数 据由JdbcType类 型转 换 成Java类 型
  void setParameter(PreparedStatement ps, int i, T parameter, JdbcType jdbcType) throws SQLException;

//从 ResultSet中获 取数 据时 会 调 用此方法，会 将 数 据由Java类 型转 换 成JdbcType类 型
  T getResult(ResultSet rs, String columnName) throws SQLException;

  T getResult(ResultSet rs, int columnIndex) throws SQLException;

  T getResult(CallableStatement cs, int columnIndex) throws SQLException;

}

public abstract class BaseTypeHandler<T> extends TypeReference<T> implements TypeHandler<T> {

  protected Configuration configuration;

  public void setConfiguration(Configuration c) {
    this.configuration = c;
  }

  @Override
  public void setParameter(PreparedStatement ps, int i, T parameter, JdbcType jdbcType) throws SQLException {
    if (parameter == null) {
      if (jdbcType == null) {
        throw new TypeException("JDBC requires that the JdbcType must be specified for all nullable parameters.");
      }
      try {
        ps.setNull(i, jdbcType.TYPE_CODE);
      } catch (SQLException e) {
        throw new TypeException("Error setting null for parameter #" + i + " with JdbcType " + jdbcType + " . " +
                "Try setting a different JdbcType for this parameter or a different jdbcTypeForNull configuration property. " +
                "Cause: " + e, e);
      }
    } else {
      try {
        setNonNullParameter(ps, i, parameter, jdbcType);
      } catch (Exception e) {
        throw new TypeException("Error setting non null for parameter #" + i + " with JdbcType " + jdbcType + " . " +
                "Try setting a different JdbcType for this parameter or a different configuration property. " +
                "Cause: " + e, e);
      }
    }
  }

  @Override
  public T getResult(ResultSet rs, String columnName) throws SQLException {
    T result;
    try {
      result = getNullableResult(rs, columnName);
    } catch (Exception e) {
      throw new ResultMapException("Error attempting to get column '" + columnName + "' from result set.  Cause: " + e, e);
    }
    if (rs.wasNull()) {
      return null;
    } else {
      return result;
    }
  }

  @Override
  public T getResult(ResultSet rs, int columnIndex) throws SQLException {
    T result;
    try {
      result = getNullableResult(rs, columnIndex);
    } catch (Exception e) {
      throw new ResultMapException("Error attempting to get column #" + columnIndex+ " from result set.  Cause: " + e, e);
    }
    if (rs.wasNull()) {
      return null;
    } else {
      return result;
    }
  }

  @Override
  public T getResult(CallableStatement cs, int columnIndex) throws SQLException {
    T result;
    try {
      result = getNullableResult(cs, columnIndex);
    } catch (Exception e) {
      throw new ResultMapException("Error attempting to get column #" + columnIndex+ " from callable statement.  Cause: " + e, e);
    }
    if (cs.wasNull()) {
      return null;
    } else {
      return result;
    }
  }

  public abstract void setNonNullParameter(PreparedStatement ps, int i, T parameter, JdbcType jdbcType) throws SQLException;

  public abstract T getNullableResult(ResultSet rs, String columnName) throws SQLException;

  public abstract T getNullableResult(ResultSet rs, int columnIndex) throws SQLException;

  public abstract T getNullableResult(CallableStatement cs, int columnIndex) throws SQLException;

}

// 记录JdbcType与TypeHandler之间的对应关系，其中JdbcType是一个枚举类型，它定义对应的JDBC类型
// 该集合主要用于从结果集读取数据时，将数据从Jdbc类型转换成Java类型
private final Map<JdbcType, TypeHandler<?>> JDBC_TYPE_HANDLER_MAP =
  new EnumMap<JdbcType, TypeHandler<?>>(JdbcType.class);

// 记录了Java类型向指定JdbcType转换时，需要使用的TypeHandler对象。
// 例如Java类型中的String可能转换成数据库的char、varchar等多种类型，所以存在一对多关系
private final Map<Type, Map<JdbcType, TypeHandler<?>>> TYPE_HANDLER_MAP =
  new ConcurrentHashMap<Type, Map<JdbcType, TypeHandler<?>>>();

// 记录了全部TypeHandler的类型以及该类型相应的TypeHandler对象
private final TypeHandler<Object> UNKNOWN_TYPE_HANDLER =
  new UnknownTypeHandler(this);

// 空TypeHandler集合的标识
private final Map<Class<?>, TypeHandler<?>> ALL_TYPE_HANDLERS_MAP =
  new HashMap<Class<?>, TypeHandler<?>>();

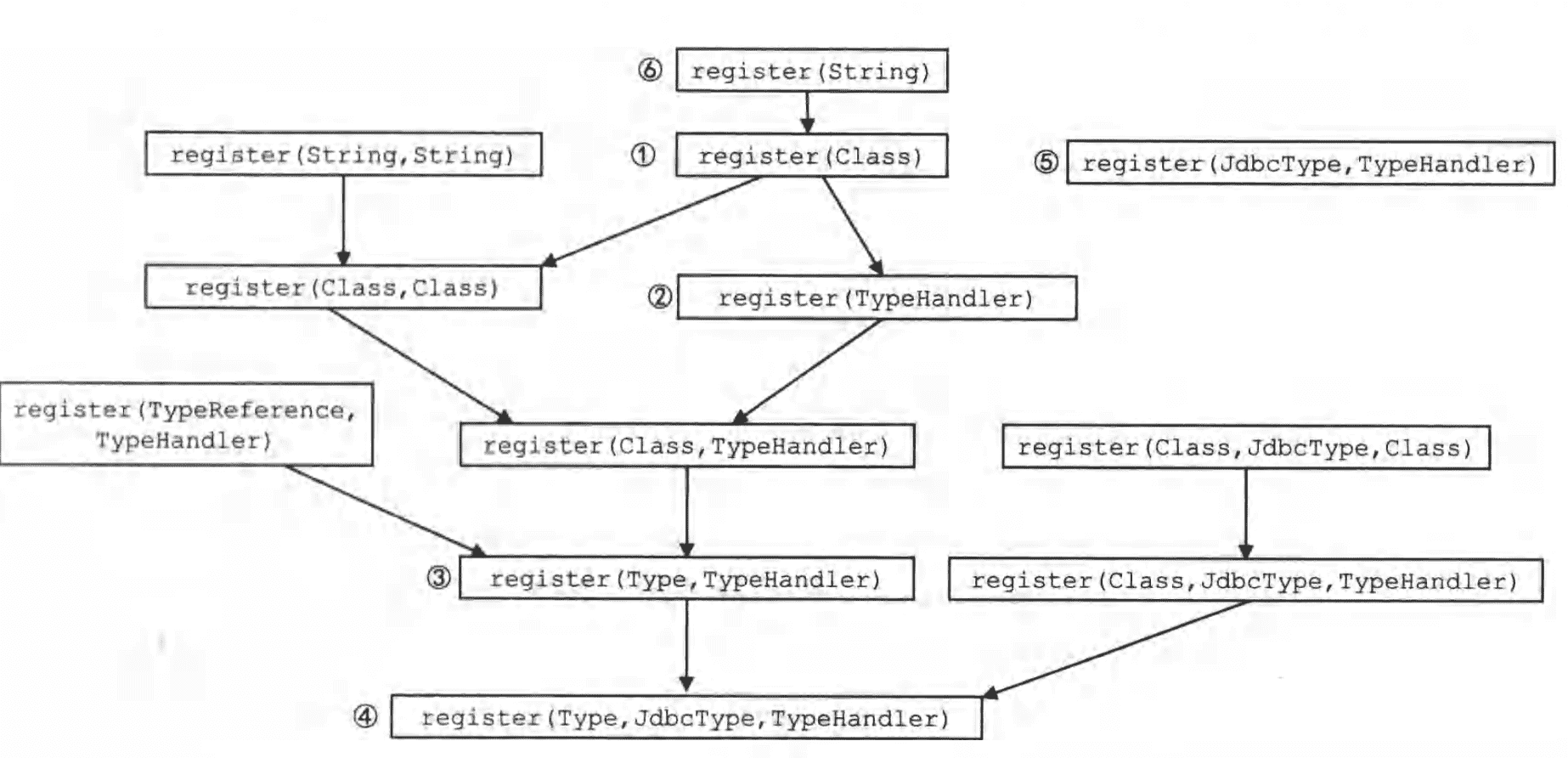

private void register(Type javaType, JdbcType jdbcType, TypeHandler<?> handler) {
  if (javaType != null) {// 检测是否明确指定了TypeHanlder能够处理的Java类型
    // 获取指定java类型在TYPE_HANDLER_MAP集合中对应TypeHanlder集合
    Map<JdbcType, TypeHandler<?>> map = TYPE_HANDLER_MAP.get(javaType);
    if (map == null || map == NULL_TYPE_HANDLER_MAP) {
      // 创建新的TypeHandler集合，并添加到TYPE_HANDLER_MAP中
      map = new HashMap<JdbcType, TypeHandler<?>>();
      TYPE_HANDLER_MAP.put(javaType, map);
    }
    // 将TypeHandler对象注册到并添加到TYPE_HANDLER_MAP中
    map.put(jdbcType, handler);
  }
  // 向ALL_TYPE_HANDLERS_MAP集合注册TypeHandler类型和对应的TypeHanlder对象
  ALL_TYPE_HANDLERS_MAP.put(handler.getClass(), handler);
}

// Only handler type
public void register(Class<?> typeHandlerClass) {
  boolean mappedTypeFound = false;
  MappedTypes mappedTypes = typeHandlerClass.getAnnotation(MappedTypes.class);
  if (mappedTypes != null) {
    for (Class<?> javaTypeClass : mappedTypes.value()) {
      register(javaTypeClass, typeHandlerClass);
      mappedTypeFound = true;
    }
  }
  if (!mappedTypeFound) {
    register(getInstance(null, typeHandlerClass));
  }
}

public <T> void register(TypeHandler<T> typeHandler) {
  boolean mappedTypeFound = false;
  MappedTypes mappedTypes = typeHandler.getClass().getAnnotation(MappedTypes.class);
  if (mappedTypes != null) {
    for (Class<?> handledType : mappedTypes.value()) {
      register(handledType, typeHandler);
      mappedTypeFound = true;
    }
  }
  // @since 3.1.0 - try to auto-discover the mapped type
  if (!mappedTypeFound && typeHandler instanceof TypeReference) {
    try {
      TypeReference<T> typeReference = (TypeReference<T>) typeHandler;
      register(typeReference.getRawType(), typeHandler);
      mappedTypeFound = true;
    } catch (Throwable t) {
      // maybe users define the TypeReference with a different type and are not assignable, so just ignore it
    }
  }
  if (!mappedTypeFound) {
    register((Class<T>) null, typeHandler);
  }
}

private <T> void register(Type javaType, TypeHandler<? extends T> typeHandler) {
  MappedJdbcTypes mappedJdbcTypes = typeHandler.getClass().getAnnotation(MappedJdbcTypes.class);
  if (mappedJdbcTypes != null) {
    for (JdbcType handledJdbcType : mappedJdbcTypes.value()) {
      register(javaType, handledJdbcType, typeHandler);
    }
    if (mappedJdbcTypes.includeNullJdbcType()) {
      register(javaType, null, typeHandler);
    }
  } else {
    register(javaType, null, typeHandler);
  }
}

public void register(JdbcType jdbcType, TypeHandler<?> handler) {
  JDBC_TYPE_HANDLER_MAP.put(jdbcType, handler);
}

public void register(String packageName) {
  ResolverUtil<Class<?>> resolverUtil = new ResolverUtil<Class<?>>();
  // 查找指定包下的接口实现类
  resolverUtil.find(new ResolverUtil.IsA(TypeHandler.class), packageName);
  Set<Class<? extends Class<?>>> handlerSet = resolverUtil.getClasses();
  for (Class<?> type : handlerSet) {
    //Ignore inner classes and interfaces (including package-info.java) and abstract classes
    if (!type.isAnonymousClass() && !type.isInterface() && !Modifier.isAbstract(type.getModifiers())) {
      register(type);
    }
  }
}

public void registerAlias(String alias, Class<?> value) {
  if (alias == null) {
    throw new TypeException("The parameter alias cannot be null");
  }

  // 将别名转换成小写
  String key = alias.toLowerCase(Locale.ENGLISH);

  // 检测别名是否存在
  if (TYPE_ALIASES.containsKey(key)
      && TYPE_ALIASES.get(key) != null
      && !TYPE_ALIASES.get(key).equals(value)) {
    throw new TypeException("...");
  }
  TYPE_ALIASES.put(key, value);
}
